ProductsVIDEO SELECTION BOX – 4 INPUTS, DIN RAIL MOUNTING, DARK GREY
4-Wire System

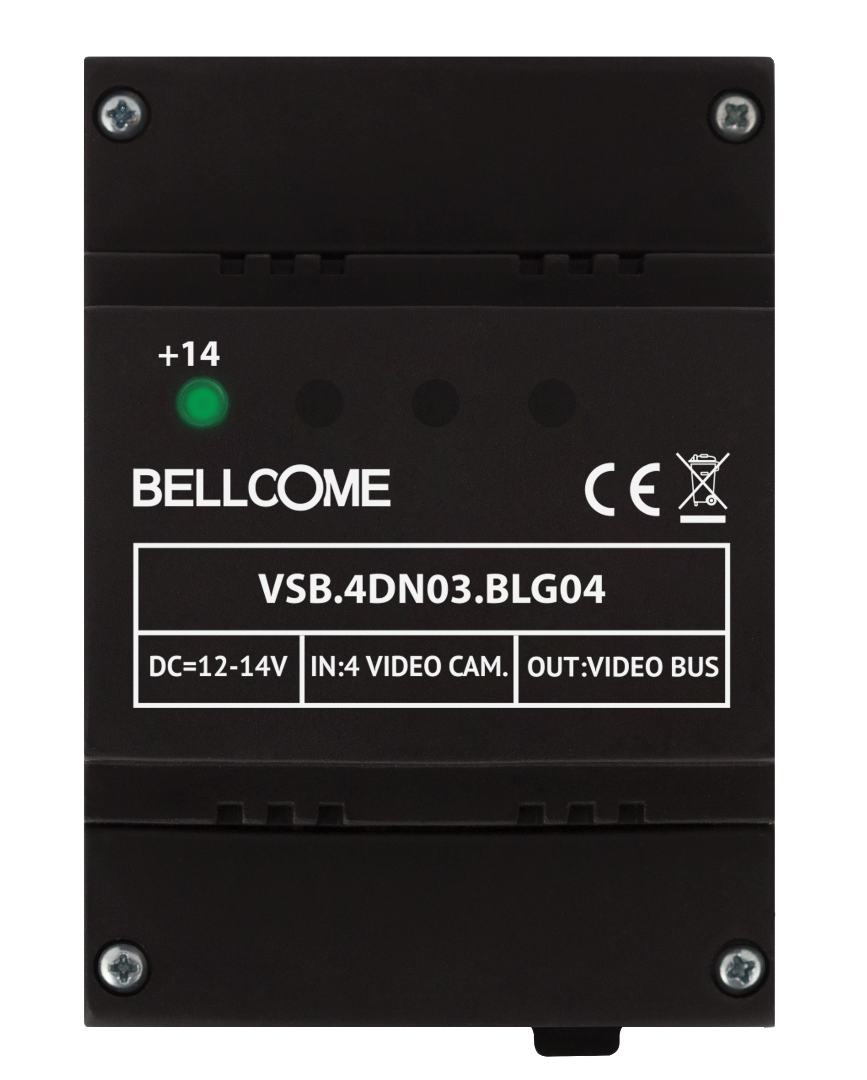

VIDEO SELECTION BOX – 4 INPUTS, DIN RAIL MOUNTING, DARK GREY
VSB.4DN03.BLG04
Example Diagrams
BLC_Handbuch_Stromversorgung_DE-EN-FR_06.2023.pdf
User Manual
Buy Now!
Exclusive at
Functionalities
Connection of max. 4 video cameras | DIN rail mounting
  • The video selection box with 4 inputs enables the interconnection of the door phone systems with outdoor panels and/or additional external video cameras.

  • Therefore, the video selection box is fitted with video signal inputs, for maximum 4 outdoor panels (1 main + 3 additional) or maximum 4 external video cameras.

  • The case is made of ABS, and the mounting can be done on DIN rail or on surface.

Technical features
    • Dimensions: 107 x 71 x 73 mm
    • Weight: 0.2 kg
    • DIN rail mounting, TH 35 X 15/ 35 x 7.5; DIN 46277-3, EN50022, IEC60715 standard or surface mounting
    • Screw connectors
    • Recommended cables, according to distance:
      - 4 x 0.5 mm2, for a distance of max. 100 m from the panel to the last terminal in the installation
      - 4 x 0.75 mm2, for a distance of max. 150 m from the panel to the last terminal in the installation
      - UTP cat 5e (AWG 24) or UTP cat 6e (AWG 23), for a distance of max. 200 m from the panel to the last terminal in the installation
    • Operating voltage: 13.5 Vd.c., 2.5 Ad.c.
    • Range of operating temperatures: 0 ... +45oC
Certifications
    • The product is CE certified by OICPE – Certificate no. 707.
    • The product contains printed circuit boards certified in compliance with the UL flammability standard – Certificate no. E307311.
    • The product is manufactured under the ISO 9001:2008 quality management system and under the ISO 14001:2009 environment management system, certified by TÜV HESSEN – Certificates no. 73 100 4856, 73 104 4856.
