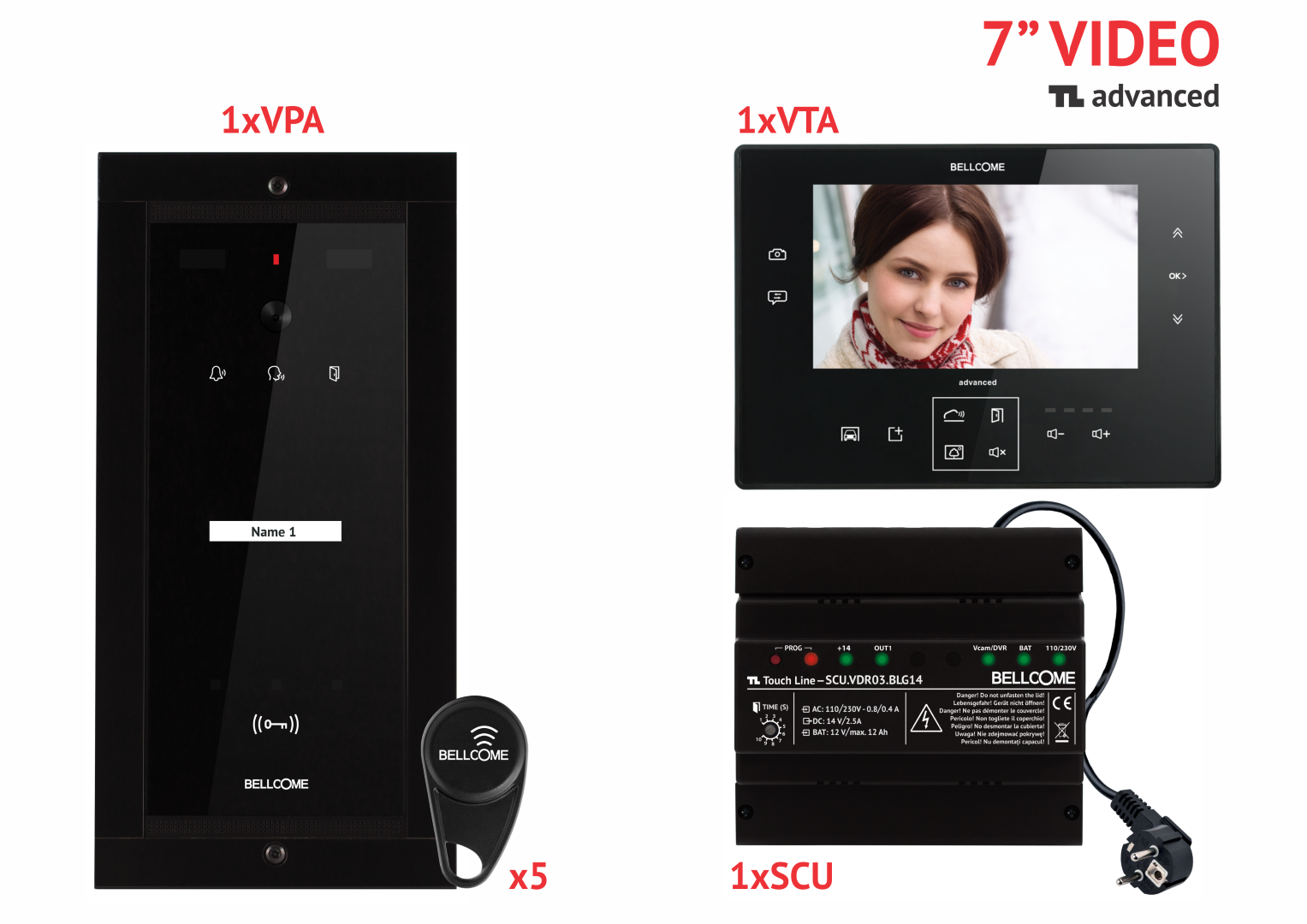

Kit Components

advanced video outdoor panel/ 1 piece

Code	VPA.1FR03.BLB04
Material	Electrostatically painted aluminum case 4 mm chemically toughened glass front surface Touch keyboard IP44 protection rating
Video camera	Color, 800 TVL, orientable by 10^o up/20^o down & 20^o left/20^o right White LEDs for day & night color view
Mounting	Flush
Color	Black
Dimensions	294 x 144 x 53 mm

See product page

advanced 7” video terminal / 1 piece

Code	VTA.7S903.BLB04
Material	ABS case 3 mm chemically toughened glass front surface Touch keyboard
Display	7” color LCD, TFT 800 x 3(RGB) x 480
Mounting	Surface
Color	Black
Dimensions	162 x 227 x 20 mm

See product page

Video central supply unit with 1 output / 1 piece

Code	SCU.VDR03.BLG14
Material	Non-flammable plastic case
Mounting	On DIN rail or on surface
Color	Grey
Dimensions	130 x 141 x 73 mm

See product page

Secured RFID tag/ 5 pieces

Code	TAG.BLC.2S0
Material	ABS case
Mounting	-
Color	Black
Dimensions	32 x 62 x 7 mm

See product page

advanced Functionalities

Main features

Call and answer

Hands-free talk

Video image display during the entire duration of the call, talk, monitoring and access

Video & audio monitoring and bidirectional talk

Day & night color view

Access granting during call, talk and monitoring

In-built RFID reader, easy access by tag/ proximity card

Two AUX keys for additional automations

Picture taking during call, talk and monitoring

100 pictures memory

Menu for View/ Delete pictures, Time & Data setting

Intercommunication with the parallel connected terminals

Available settings

Call & talk volume adjustment: 4 levels and Mute

Ringtone selection: 5 options

Selection of call duration: 1/ 2/ 3 calls or 1 min.

Video image adjustment: contrast, brightness and chroma

Time & date setting

Lock opening duration: 1 – 10 sec.

Storage/delete function for RFID cards

Video camera operating mode: only during use or permanent

Activation / deactivation of the red LED signaling the presence of monitoring

Possible extensions

Various types of door locks:

- Direct current lock;
- Alternating current lock;
- Electromagnetic lock (12/24V, max. 3A), normal open or normal closed;

External EXIT button;

Two auxiliary commands: auto gate, garage door, outdoor lighting or any other automation (12/24V, max.0.5A);

One external video camera, connected and power supplied in the central unit.

Up to 4 external video cameras, with a video selection box;

A video recorder (DVR), for image recording

Doorbell, connected to the terminal

Acoustic (Gong type) or optical call alert device, connected to the terminal

Up to 3 additional video and audio terminals

Up to 3 additional outdoor panels, for multiple access gates (with a video selection box).

Additional RFID tags/ cards

Technical features

Box dimensions: 315 x 165 x 165 mm

Recommended cables, depending on the distance between the outdoor panel and the last terminal in the installation:

- 4 x 0.5 mm² - max. 60 m; 4 x 0.75 mm² - max. 150 m;
- UTP/ FTP cat5e (AWG24) or UTP/FTP cat6 (AWG23) - max. 250 m;

Operating voltage: 12 – 14 Vd.c from the central unit

Range of operating temperatures: -30 ... +60^oC

Certification

The product is CE certified.

The product contains printed circuit boards certified in compliance with the UL flammability standard – Certificate no. E307311.

The product is manufactured under the ISO 9001:2015 quality management system and under the ISO 14001:2015 environment management system, certified by TÜV HESSEN – Certificates no. 73 100 4856, 73 104 4856.
